Production Equipment

Six precision lines with the same tolerance discipline: burr ≤ 0.03 mm, diagonal ≤ 0.5 mm, width ≤ ±0.2 mm.

0
Production lines
0
Tonnes annual capacity
0
mm max thickness
0
mm min strip width
Quanqi Flying-Shear Leveling Line (1650)
QSL-3.0-1650NCR

Quanqi Flying-Shear Leveling Line (1650)

1650 mm leveling flying-shear line with edge trimming: continuous leveling feed, the shear travels with the strip, flat panels free of waves.

Processing thickness
≤ 3.0 mm
Processing width
≤ 1650 mm
Line speed
up to 80 m/min
Edge trimming
both edges
Flatness
≤ 1/4 of sheet thickness per m²
Shear type
flying shear, on-the-fly
Feed mode
continuous leveler feed
Speed control
stepless, full line
Quanqi Flying-Shear Leveling Line (1650) — Unit 2
QSL-3.0-1650NCR

Quanqi Flying-Shear Leveling Line (1650) — Unit 2

Second unit of the same model with identical configuration; the two lines run in parallel for wide-sheet work.

Processing thickness
≤ 3.0 mm
Processing width
≤ 1650 mm
Line speed
up to 80 m/min
Edge trimming
both edges
Flatness
≤ 1/4 of sheet thickness per m²
Shear type
flying shear, on-the-fly
Feed mode
continuous leveler feed
Speed control
stepless, full line

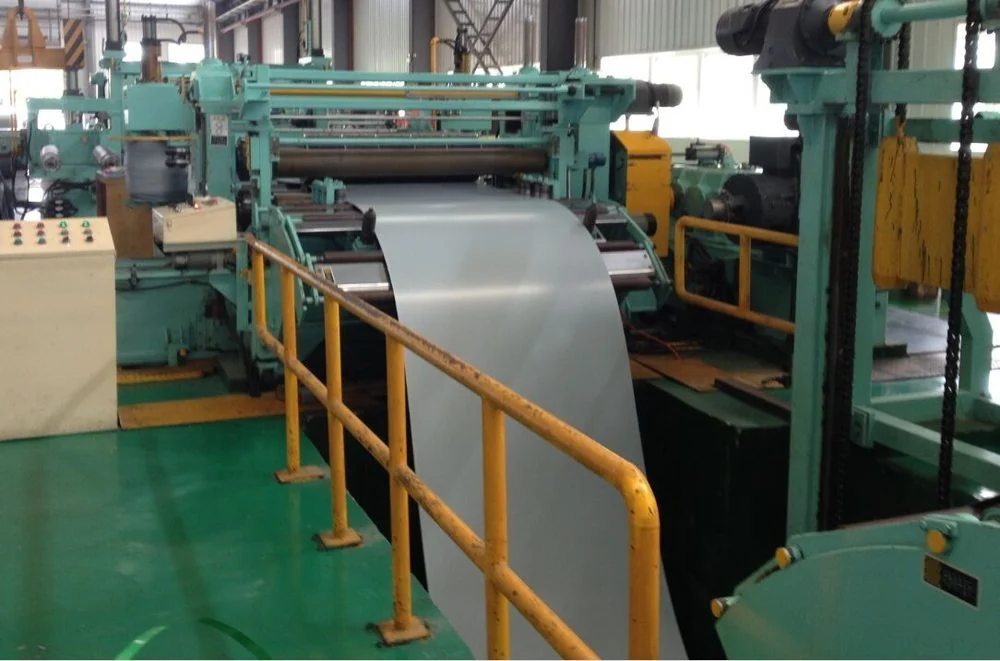

Precision Leveling & Cut-to-Length Line
QSL-3-1650NCR

Precision Leveling & Cut-to-Length Line

Our widest line — full-width 1650 mm coil leveled and cut to length with flying shear. Double-sided electrostatic film/paper lamination.

Processing thickness
0.3–3.0 mm (stainless ≤ 1.5 mm)
Processing width
≤ 1650 mm
Standard length
300–4000 mm
Length tolerance
±0.3 mm
Cutting burr
≤ 0.03 mm
Diagonal tolerance
≤ 0.5 mm
Line speed
80 m/min
Annual capacity
70,000 T
Precision Leveling & Cut-to-Length Line
JSL-3-1600NCR

Precision Leveling & Cut-to-Length Line

The workhorse of our cut-to-length operation, equipped with double-sided electrostatic film and paper lamination.

Processing thickness
0.3–3.2 mm (stainless ≤ 2.5 mm)
Processing width
600–1600 mm
Standard length
100–4000 mm
Length tolerance
±0.5 mm
Cutting burr
≤ 0.03 mm
Diagonal tolerance
≤ 0.5 mm
Line speed
50 m/min
Annual capacity
50,000 T
Precision Slitting Line
JSL-3-1600NCR

Precision Slitting Line

High-speed slitting down to 21 mm strip width with ±0.2 mm width tolerance, plus double-sided lamination.

Processing thickness
0.3–3.2 mm (stainless ≤ 2.5 mm)
Processing width
25–1600 mm
Minimum strip width
21 mm
Width tolerance
≤ ±0.2 mm
Cutting burr
≤ 0.03 mm
Line speed
150 m/min
Annual capacity
50,000 T

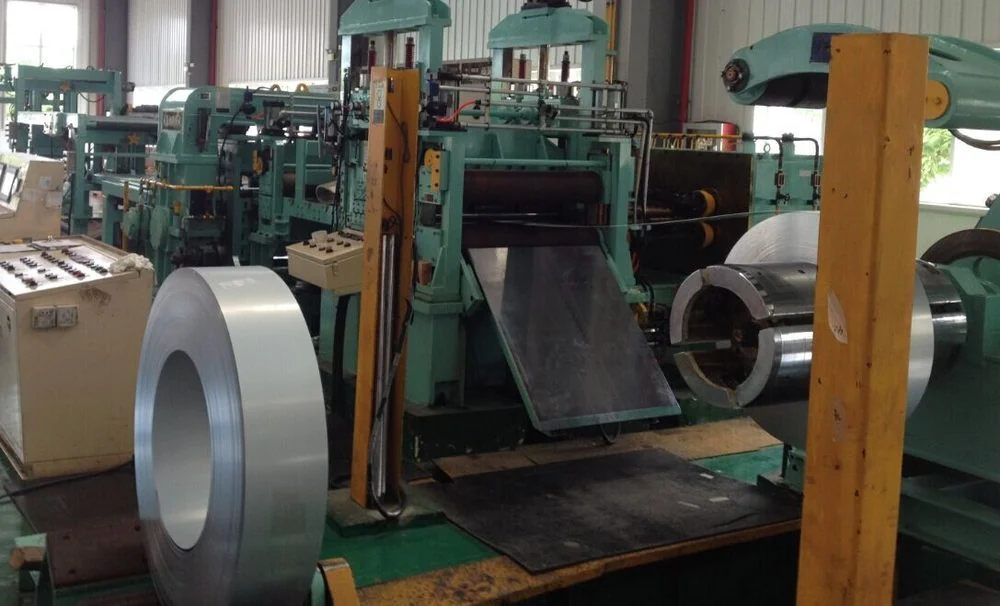

Leveling & Cut-to-Length Flying Shear Line
JSL-3-1600NCR

Leveling & Cut-to-Length Flying Shear Line

Narrow-coil flying shear for short, precise blanks — minimum length down to 25 mm.

Processing thickness
0.3–3.0 mm (stainless ≤ 1.5 mm)
Processing width
25–650 mm
Standard length
25–2000 mm
Length tolerance
±0.3 mm
Cutting burr
≤ 0.03 mm
Diagonal tolerance
≤ 0.5 mm
Line speed
70 m/min
Annual capacity
30,000 T

Match your parts to the right line.

Anti-static films and interleaving paper protect your material from coil to press. Send thickness, width, cut length and tolerance — we confirm the line and quote processing.
